Bevel Gear Milling machine

YK2260X/M Milling Machine
(CNC Spiral Bevel Gear Milling Machine)

Author: Time:2015-07-20 Views:6462
YK2260X/M Milling Machine<br/> (CNC Spiral Bevel Gear Milling Machine)

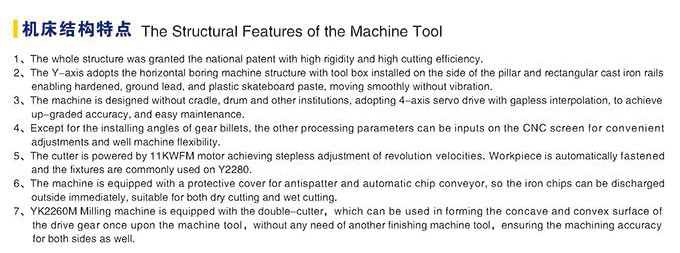

The Structural Features of the Machine Tool

1. Rigidity and cutting efficiency.

2. The Y-axis adopts the honzontal boning machine structure with tool box installed on the side ol the pilar and rectangular cast iron rail9enabling hardened, ground lead, and plastic skateboard paste, moving smoothly without vibration.

3. The machine is designed withoul cradle, drum and other insftuons, adopling 4-axis servo drive with gapless interpolation,to achieveup-graded accuracy. and easy maintenance.

4. Except for the installing angles of gear bilets, the other processing parameters can be inputs on the CNC screen for convenientadjustments and well machine flexibility.

5. The cutter is powered by 11KWFM motor achieving stepless adjustment of revolution velocities. Workpiece is automatically fastenedand the fixlures are commonly used on Y2280.

6. The machine is equipped with a proteclive cover or antispalter and automatic chip conveyor, so the iron chips can be discharged

outside immediately. suitable for both dry cutting and wet cutting.

7. YK2260M Miling machine is equipped with the double-cutter, which can be used in forming the concave and convex surtace of the dnve gear once upon the machine tool, Without any need of another tinishing machine tool, ensunng the machining accuracy

for both sides as well.
